BROADCAST

Applications

Installation Examples

Installation Examples



FUJI Acoustic Music Festival

PDF

Installed products

HS-8, SS-CDR200, RC-HS20PD

Overview

At the FUJI acousmatic music festival, electroacoustic music known as musique concrete and acousmatic music is produced in performances by the composers themselves using an acousmonium, which is a three-dimensional sound system that reproduces sound using multichannel speakers to create a sonic space.
At the second festival, which was held in 2011, through performances using a mixer with both simple two-channel and eight-channel sounds, an enveloping sonic space was create using a 30-channel system with 32 speakers.
Our RC-HS20PD remote controls were used with SS-CDR1 solid-state/CD recorder for the playback of two-channel audio and HS-8 eight-channel audio recorders for the playback of eight-channel audio.




User comment
Mr. Taro Yoshihara

Composer
FUJI acousmatic music festival Director
University of Yamanashi lecturer

The FUJI acousmatic music festival program includes 15 composers who are active in the field of electroacoustic music in Japan and aboard. We have built a sound system (acousmonium) that uses 30 speaker channels to achieve three-dimensional sound reproduction. For the playback equipment, which can be called the heart of the system, we used an HS-8 for the first time.
The aligned desires of the composers and goals of the festival were to further improve the sound quality of the acoustic space and increase the audio resolution, but these were large tasks. Incorporation of the HS-8, however, allowed us to significantly achieve these goals.

In particular, for performances that take a long time, the HS-8's operation stability and the lack of any trouble under severe usage conditions for about 48 hours from the start of rehearsal to the end of the performance offer excellent reasons to think seriously about utilizing it again in the future.

Mr. Masatsune Yoshio

Composer
Showa University of Music lecture

This time, rather than using the equipment as a recorder, I used it as a multi-track playback device. Since this use is a little different from its original purpose, I am afraid my comments might not quite be what TASCAM expects.
First of all, the sound quality is quite good. Most of the recording and playback equipment I have access to, while having become digital and more compact, seems to have also declined in audio quality compared to the analog equipment of the past. So honesty, I did not have high expectations.

When I actually heard the sound, through, I was surprised by the accurate sound output, which was true to the sound that I intended as its author. When playing back data, the RC-HS20PD remote control unit was really easy to use and being able to access the beginning of tracks quickly was good.
This time, I needed to transfer individual wav files that I had already mixed to eight channels in a DAW to the HS-8 eight-track. Once I got the basics, this process went smoothly.
With its generally high sound quality and the ability to endure continuous playback, I feel that this device is perfect for live performances using multi-track playback.

Mr. Saburo Ubukata

Composer

Until now, when introducing high-resolution multi-channel works, in consideration of sound quality, I naturally had to use computers and audio interfaces, even through they create a lot of uncertainties as playback systems. Alternatively, even through the resolution was lower, using the playback equipment available before was unavoidable in many cases. Particularly in this latter type of situation, I really felt how difficult electroacoustic music is because the output is a crucial element.
In contrast, using the HS-8 this time, all of those issues were wiped away at once for the first time. The high-resolution output with its descriptive powers recreated the sound as I had imagined it in a live setting with no discrepancies in the sound quality from when monitoring during production of the work.
The operability and solidity of the main unit and the remote control unit, as well as the stability of the system leave nothing to criticize. I could really rely on this equipment.

To Index





FM Sanin -FM Broadcaster-

PDF



Installed products

CD player:CD-9010 + RC-9010S + AK-S9010 + AK-A9010
Main application:CD players for transmission(replacement from CD-701 and RC-601)

Overview

FM Sanin is an FM broadcaster that reaches Tottori and Shimane prefectures and other nearby areas in Japan. It has ten translator stations in the region, including in Matsue and Tottori. This broadcaster has adopted our CD-9010 system in their main studio. They have upgraded from a system with TASCAM CD-701 and RC-601 units that they had previously used.
Since the previous system was operated with specialized furniture, with the adoption of the CD-9010 system this time, they also incorporated out AK-S9010 stands and AK-A9010 armrests designed for the units.
Previously, dedicated monitoring speakers were necessary, but with the incorporation of this model, they are no longer needed because monitoring can be done with the RC-9010S units. They finished the AK-A9010 armrests to match the design of their console.

Website
http://www.fm-sanin.co.jp/
To Index





Glovision Inc. -Post Production-

PDF



Installed Products

HS-8
Main application:Backup recorder when recording with Pro Tools

Overview

Glovision Inc. produces sound for anime and undertakes a variety of dubbing-related projects, including dubbing and subtitling DVDs and dubbing movies for theatrical release. With four recording studios, one of their segments is a full digital system with support for 5.1 channel surround sound. The studio covered here is their MA ROOM-3 where they record sound into Pro Tools through an SSL AWS948. Frequently, as many as four lines are used from a linked booth, primarily for recording overdubbed voices. Our HS-8 recorder is used as a backup for Pro Tools.
In addition, they use it for reading and checking data brought in from outside and as a player for input into Pro Tools. They previously used our DA-98HR for the same purpose, so they have incorporated our HS-8 as its replacement. This system utilizes as an independent recorder for its stability and security.

Website
http://www.glovision.co.jp/
To Index





ytv NexTry -TV Program Production-

PDF



Installed Products

HS-4000, RC-HS32PD
Main application:Flash starting system for use outside the studio

In addition, they use MD-801, MD-350 and other MD recorders in each studio, and they use our DA-88 for surround master playback.

Overview

Ytv NexTry undertakes all aspects of TV program production, from planning, filming and editing to mastering. They use our HS-4000 and RC-HS32PD in a flash starting system that can be taken out during filming.
One feature of the HS-4000 is its 2x2 playback ability. Using this in the system, after preparing audio elements in the studio, they transport the HS-4000 and RC-HS32PD units in a specially-ordered case, and use it for flash starting away from the studio, including outdoors.

Website
http://www.nextry.net/
To Index





Akita Broadcasting System (ABS) -Television and Radio Broadcaster-

PDF



Installed Products

HS-2000
Main application:Master recorders/players and production recorders for radio transmission

Overview

Akita broadcasting System (ABS) started in 1953 as a private radio broadcaster and since become a broadcaster that transmits both television and radio programming. ABS is a key station for Nippon Television (NTV), while the radio programming it broadcasts is closely tied to the community.
They have incorporated our HS-2000 units as master recorders/players for radio transmission in their master room and sub studio. The HS-2000 units have replaced 6mm tape decks (backup transmission equipment).

In the master room, the HS-2000 operates as a backup to the APS transmission server. BC$STANDBY tallies are sent from the HS-2000's parallel control connector and play commands are sent from the APS server in this system. BWF-J format is used in take made and in on-air mode, which is a mode unique to the HS-2000.

In the sub-studio, the main application of the HS-2000 is as a production recorder, replacing the 6mm tape decks and MO and MD discs previously used for this work. Moreover, taking advantage of its ability to handle a wide range of formats, it is also used for playback of data brought in from elsewhere.

Website
http://www.akita-abs.co.jp/
To Index





TBS Radio & Communications -Radio Broadcaster-

PDF

Installed Products

HS-2000, HS-2
Main application:production recorders and players, backup transmission players.

Overview

TBS radio & Communications is a radio broadcast station of the Tokyo Broadcasting System group (TBS) of radio broadcasters. The station has primarily incorporated our HS-2000 and HS-2 units as replacements for DAT recorders and has installed them in multiple studios.

HS-2000 and HS-2 units are used together and operated separately for recording and playback. Fader starting is conducted via parallel control for playback. For master transmission operations, the HS-2000's unique on-air mode is used.

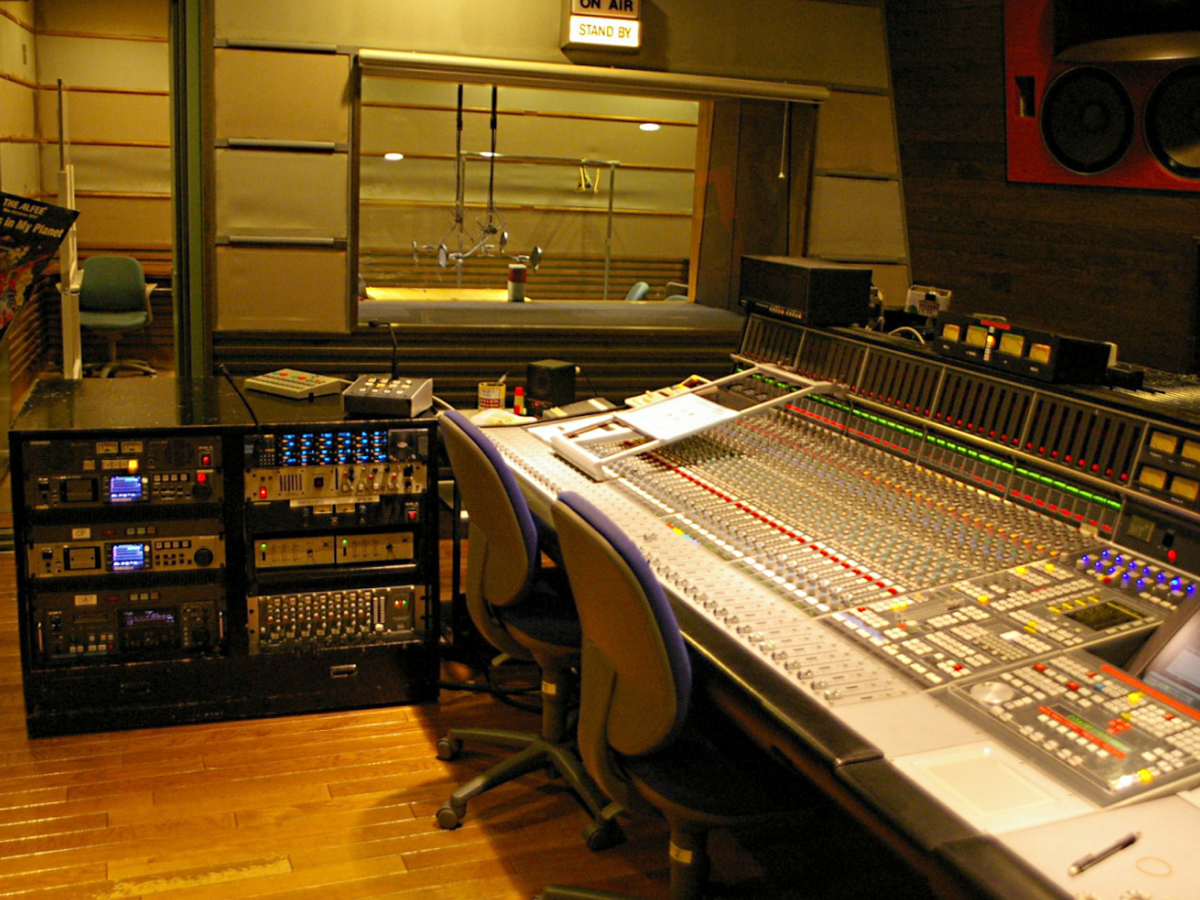

Studio 1

HS-2000, HS-2
Production recorder/player


The HS-2 is used for recording, and the HS-2 receives fader start commands through its parallel control connector from the console. Both the HS-2000 and HS-2 are operated in timeline mode.

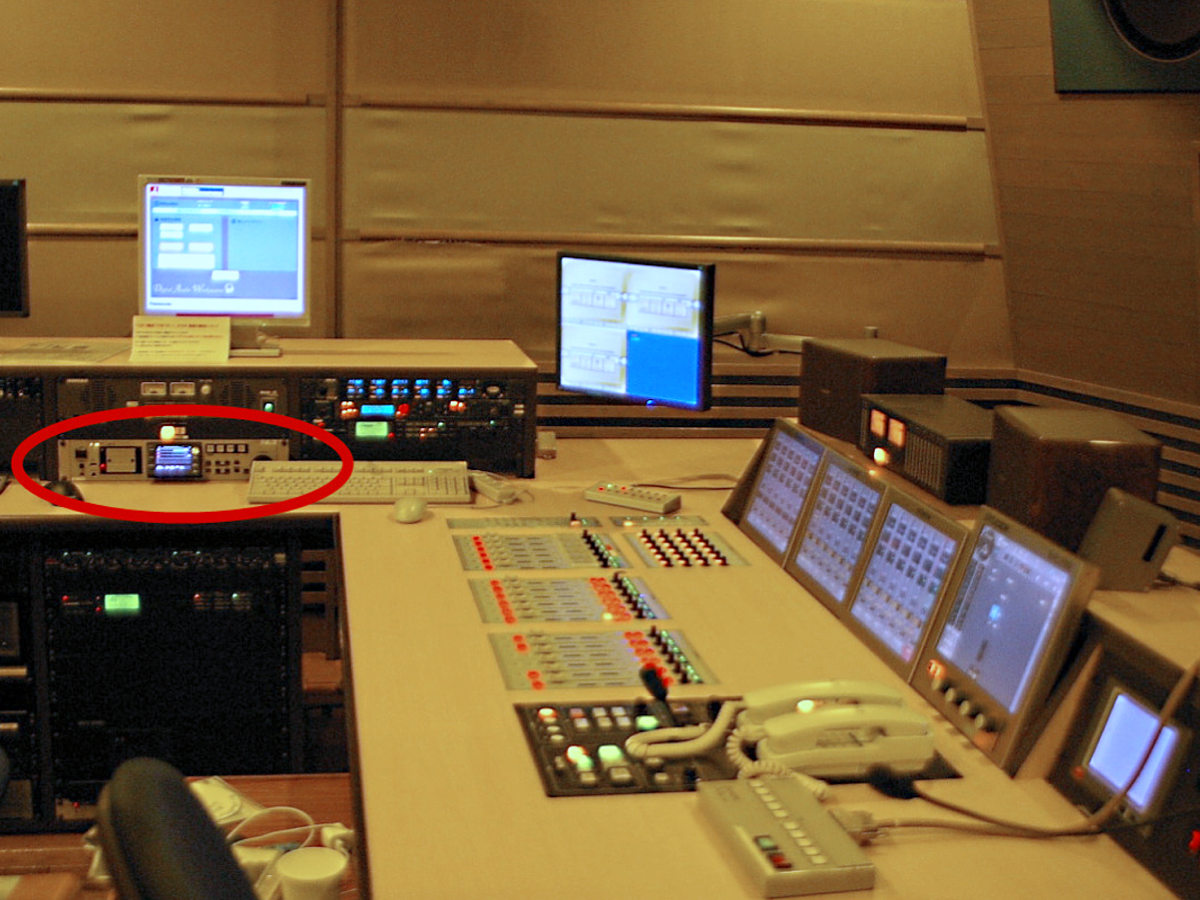

Studio 5

HS-2
Production recorder/player


In this creation and production studio, this unit has been incorporated for use as both a recorder and a player. In the same way as in Studio 1, it receives fader start commands through its parallel control connector from the console.

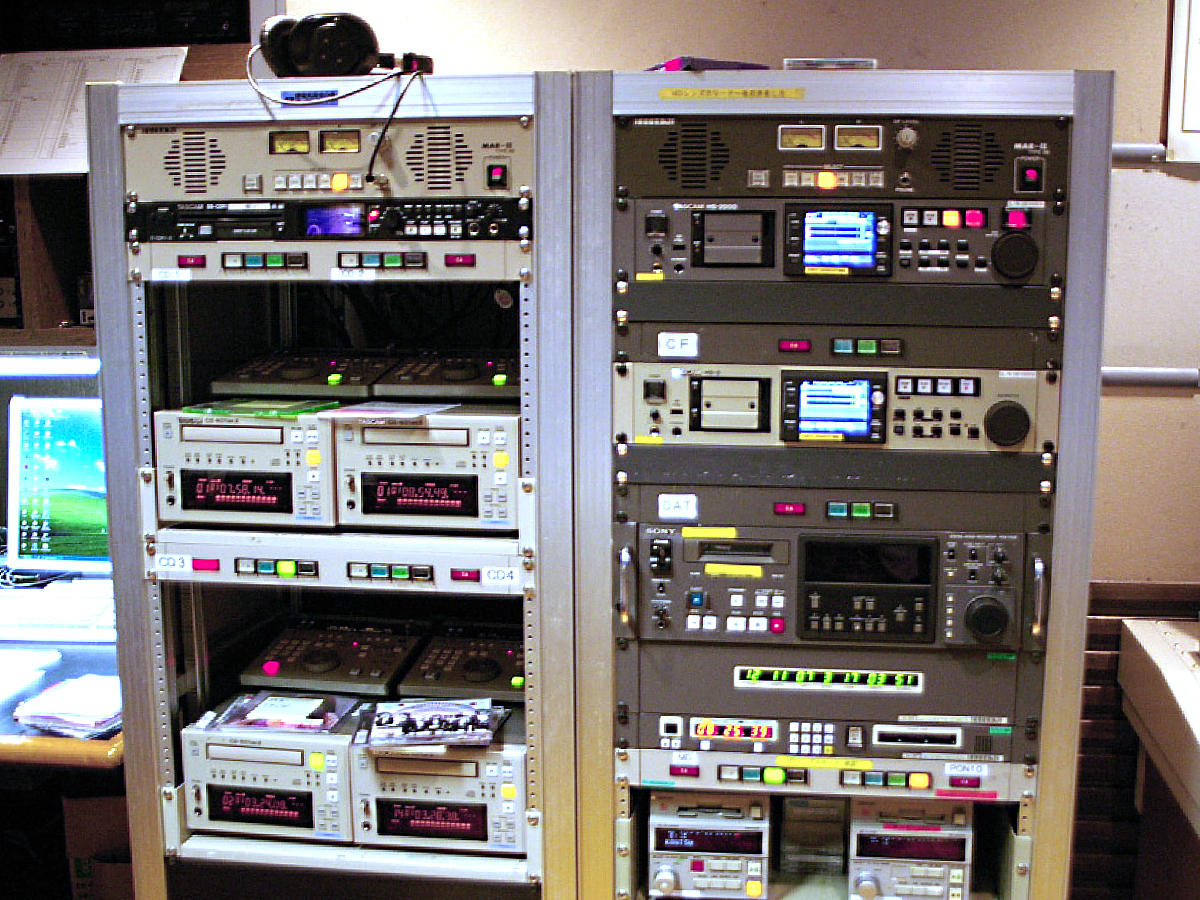

Studio 7

HS-2000, HS-2
Production recorder/player


In this production studio designed for live broadcasting, the HS-2000 is used for recording and the HS-2 is used for playback in the same way as in Studio 1. Fader start commands are also sent from the console using parallel control.

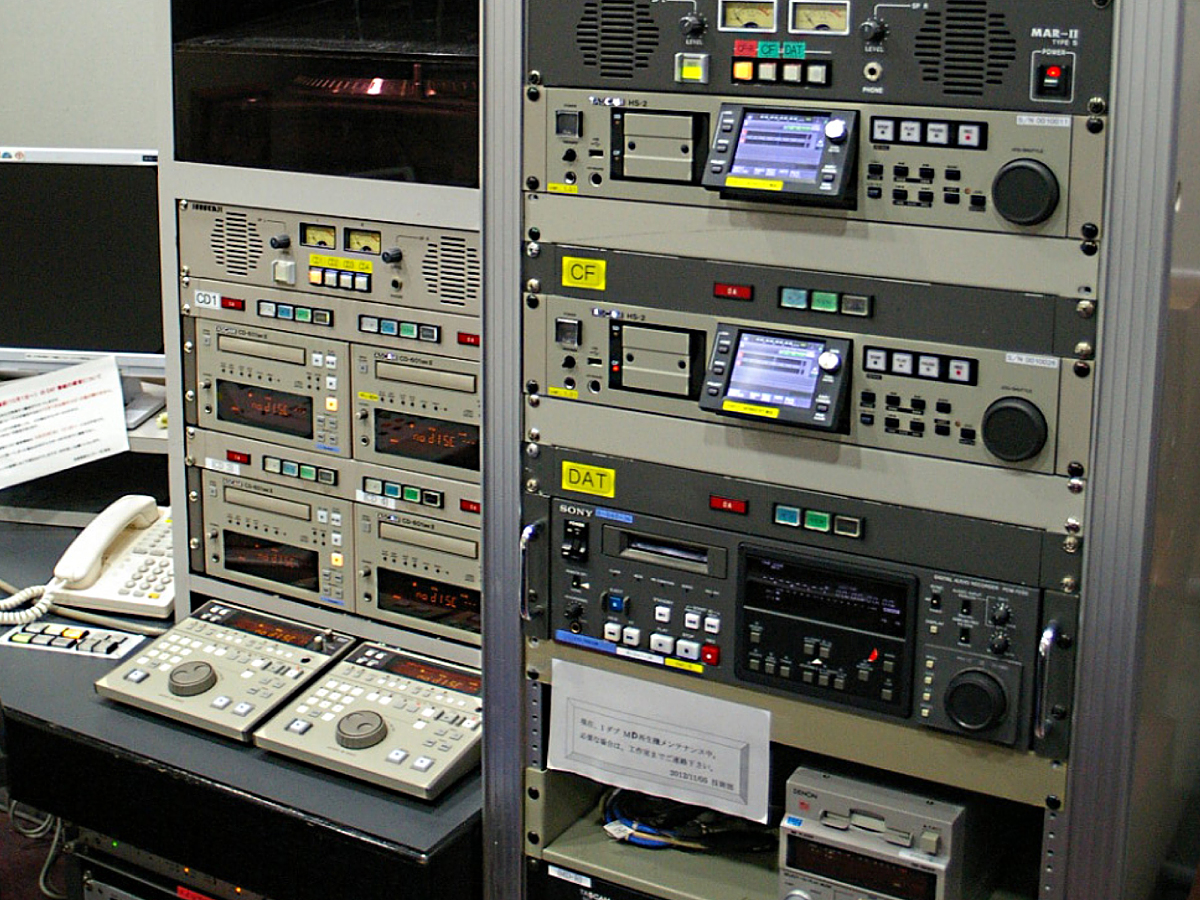

Dubbing room 1

HS-2
Production recorder/player


Two HS-2 units have been installed in this dubbing studio. One is used for recording and the other is used for playback with fader start commands sent from the console.

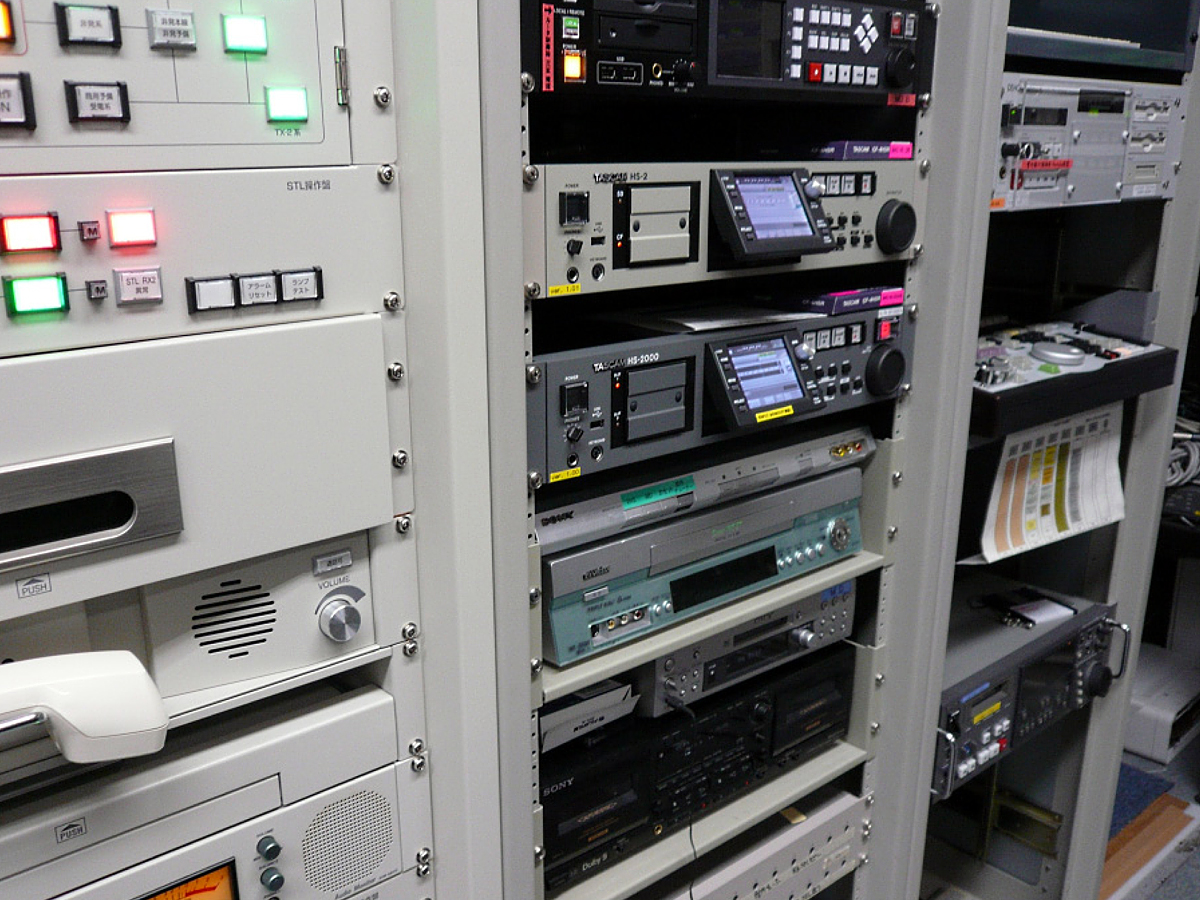

Radio master room

HS-2000, HS-2
Backup transmission players


In the radio master, these units have been incorporated as backup players for the APS transmission server.
Transmission from the HS-2000, which is operated in on-air mode.

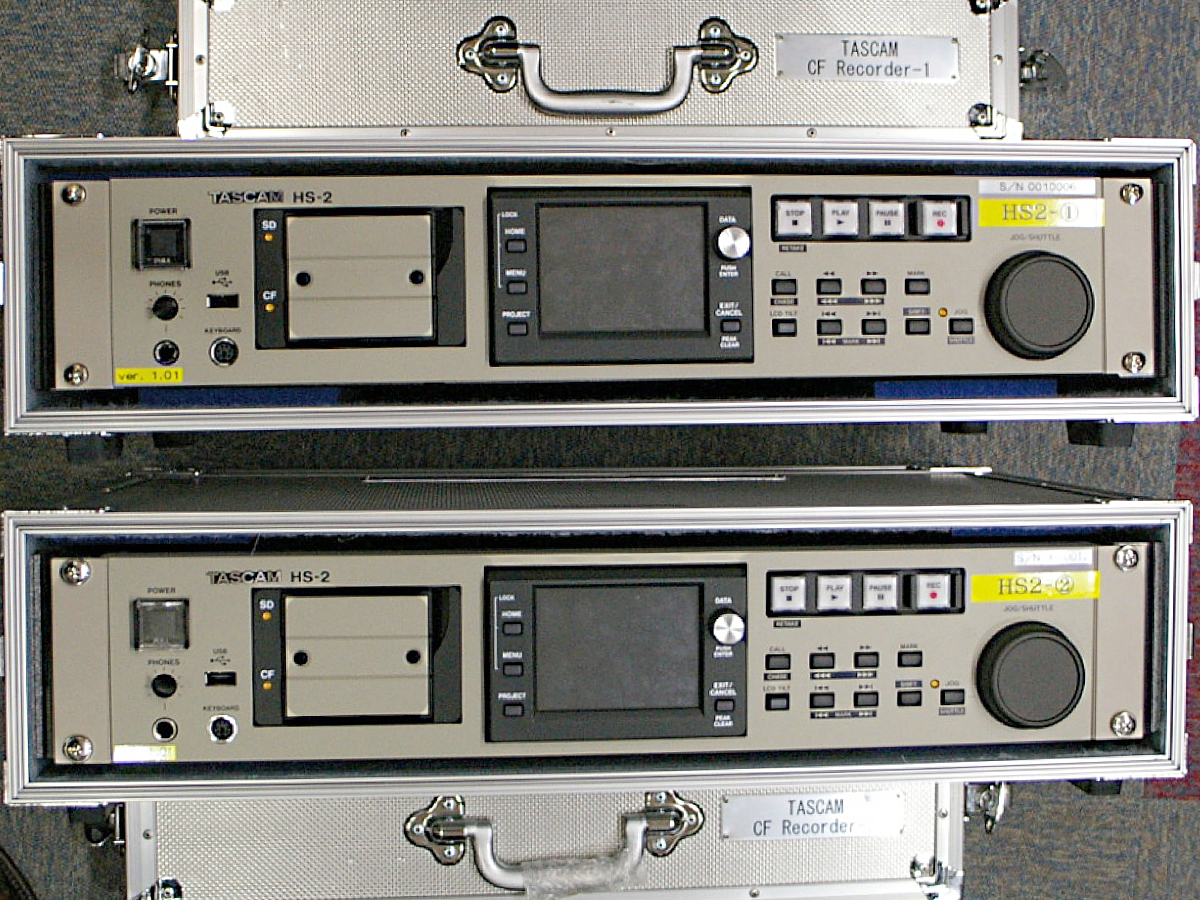

Relay broadcast equipment

HS-2
Production recorder/player


In addition to units installed in studios, two HS-2 units have been adopted as relay broadcast production recorders. They are operated inside specifically-designed hard cases.

Website
http://www.tbs.co.jp/radio/company/
To Index





Sanrio Entertainment Co., Ltd. -An Amusement Park-

PDF

Installed Products

X-48MKII
Main application:Playback of attraction sounds (including music and effects)

Overview

© 2013 SANRIO CO., LTD.

Sanrio Entertainment Co., Ltd. operates Sanrio Puroland, an amusement park located in Tama Center (Tama City, Tokyo), which is also where TEAC is headquartered. Sanrio puroland, which has a large 21,173m² property, opened in 1990 as the first entirely outdoor theme park in Japan.

The theme park has incorporated an X-48MKII as a multi-track audio playback device for the "Power The Kitty" attraction.

Another system has been set up that uses the X-48MKII as the timecode master. Video display devices (for projection mapping, shown in the photo to the left) receive this timecode and operate as timecode slave units. In this system, transport control is sent from a third-party MMC controller (photo below) to operate the X-48MKII, and video is synchronized with audio playback to be shown. Multi-track recordings created in Pro Tools are imported and played back by the X-48MKII not only as background music but also for sound effects and other audio.

The X-48MKII has an IF-AN24X optional analog card installed. The X-48MKII is using analog connection for communication with the digital mixer. The audio is output to the attraction after mixing.



Website
http://www.sanrio-entertainment.co.jp/
http://www.puroland.jp/
To Index





Japan Broadcasting Corporation (NHK) -Radio and Television Broadcaster-

PDF

Installed Products

HS-4000
Main application:Recorders for audio editing

HS-4000 + RC-HS32PD
Main application:Players for audio transmission during program production (flash-starting)

CD-9010CF + RC-9010 + AK-S9010 + AK-A9010
Main application:CD players for program production

Overview

NHK has installed numerous TASCAM products, including HS-4000 and CD-9010CF in its stations throughout Japan. This example is from a studio in the NHK Broadcasting Center in Shibuya.

The HS-4000 units have been installed as replacements for multiple magnetic-optical drive (MO) and DAT players/recorders. The CD-9010CF units have been installed as replacements for the previous Broadcast CD players.

NHK uses the HS-4000 units connected to a local area network (LAN). In addition to the HS-4000 units themselves, they have also installed a TASCAM IF-D4000VN unit for VGA display connected by VNC. An external display is connected to the IF-D4000VN and used to show in one place the contents of four HS-4000 displays. Two are utilized for recording and two for playback.

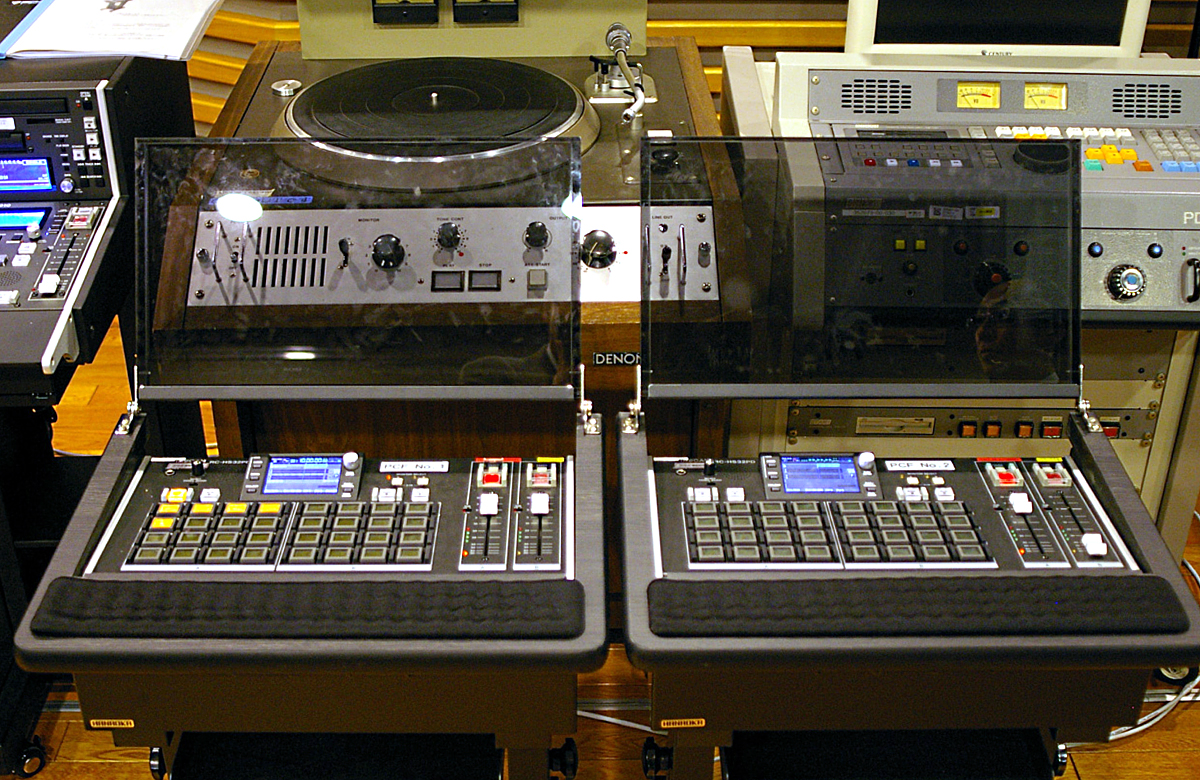

The HS-4000 units that are used for playback each have one RC-HS32PD unit connected as a flash-starting controller. The RC-HS32PD controllers are installed in custom racks.

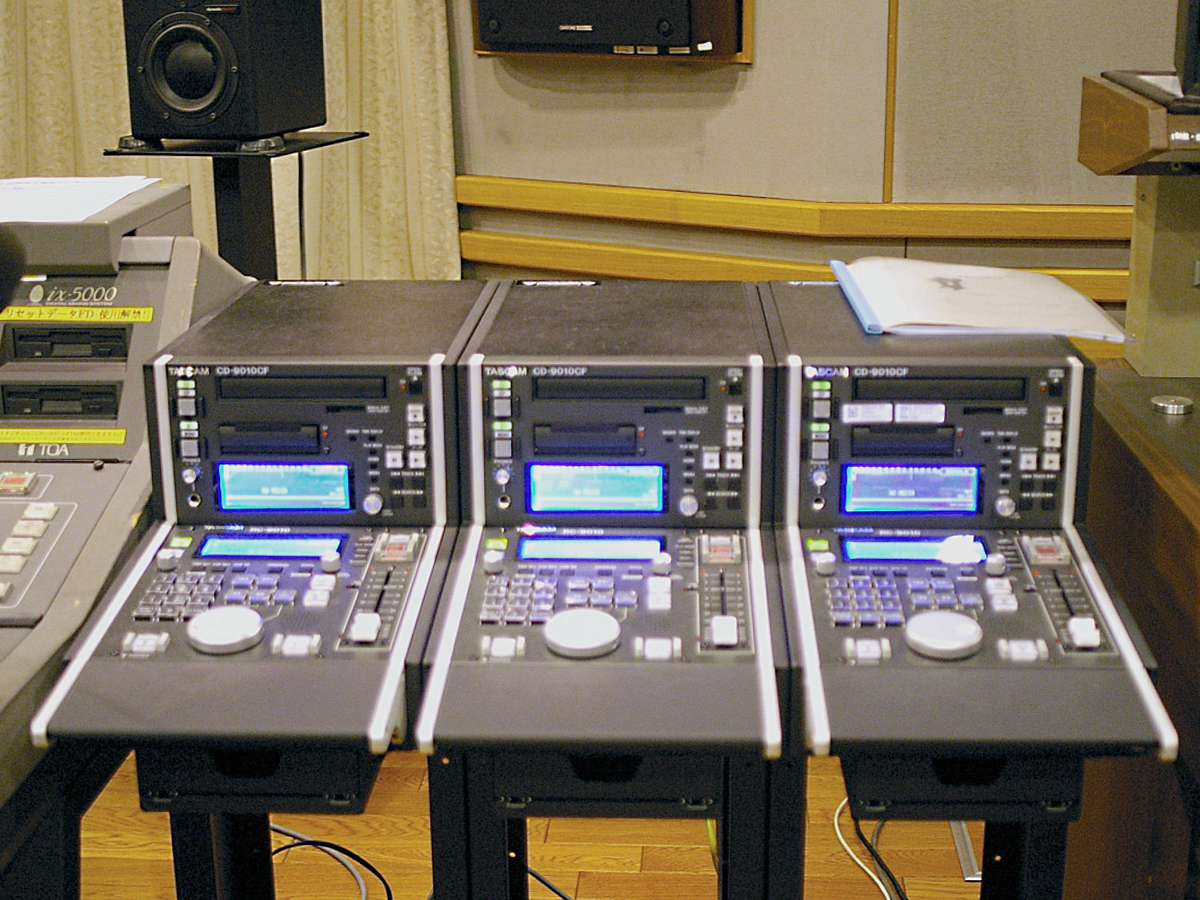

Each CD-9010CF unit has a connected RC-9010 that is equipped with an AK-A9010 armrest. Together these are mounted on AK-S9010 stands designed specifically for this combination of units.

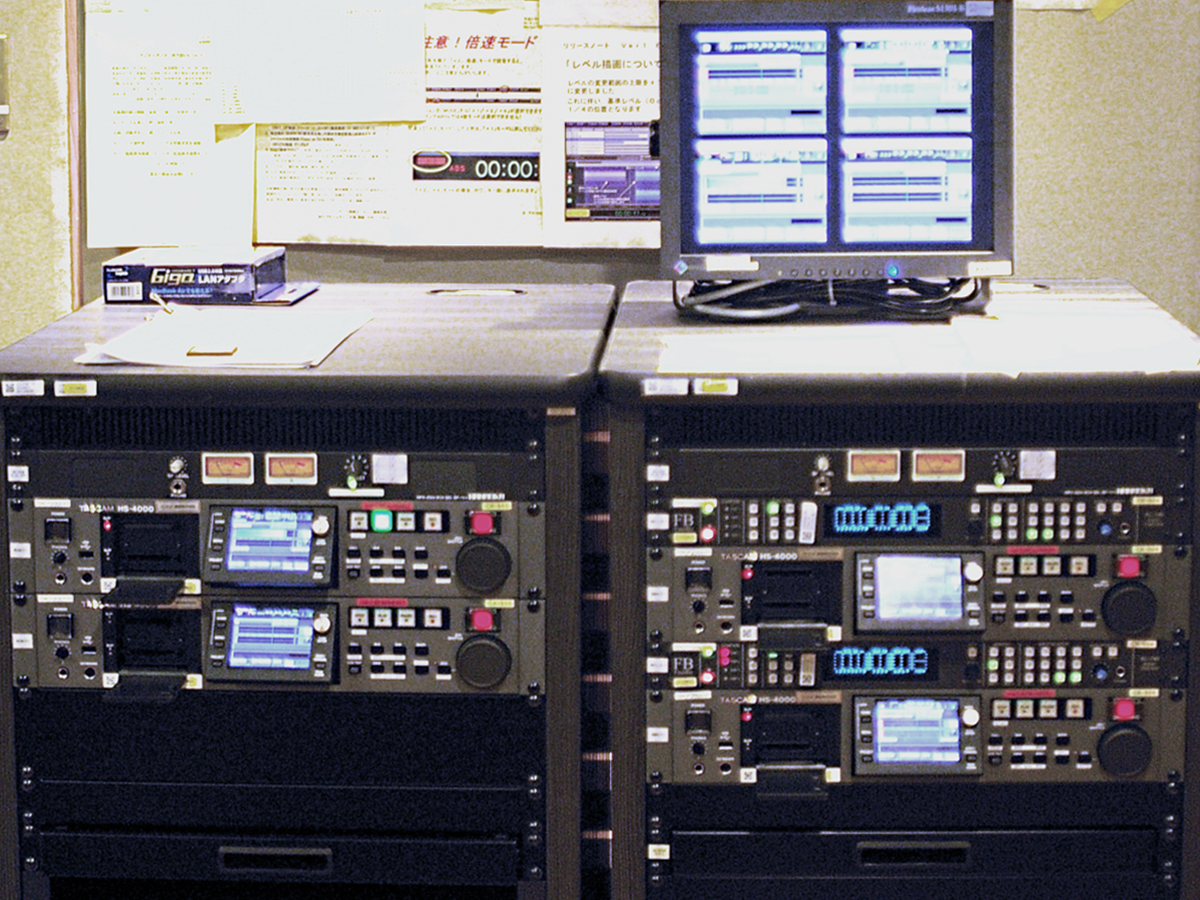

HS-4000

HS-4000 + RC-HS32PD

CD-9010 SYSTEM
To Index





Tokyo Metropolitan Television Broadcasting Co.(TOKYO MX) -Television Broadcaster-

PDF

Installed Products

HS-2 + RC-HS20PD
Main application:Audio transmission player for news sub studio (flash starting)

Overview

Tokyo Metropolitan Television Broadcasting Corporation conducts its broadcasting business through its television station popularly known as TOKYO MX. Founded in 1995, the station has been broadcasting from the Tokyo Skytree since October 2012.

They have adopted our products to replace the mini-disc player/recorders previously used. An on-site operator informed us that they are very multi-functional, easy to use and that they have been 100% reliable since being installed.

Operated in their news sub studio, they are mainly used for the transmission of sound effects, music for weather reports and news programs. RC-HS20PD units have been installed on the console at a distance from the HS-2 units. They allow transmission control to be conducted from a location where flash-starting operations are easily executed.

They are operated using ordinary take and playlist modes. The flash-start data is edited using a DAW and then copied to the CF cards used in the units.



Website
http://www.mxtv.co.jp/
To Index





TV Asahi Corporation -Television Broadcaster-

PDF

Installed Products

HS-2 + RC-SS20
Main application:Audio player for transmission (flash-starting)

Overview

TV Asahi Corporation, headquartered in Roppongi, Tokyo, is a broadcaster with branches in cities around the world, including Washington, New York, London and Beijing.

In their news sub studio, they have incorporated an HS-2 as a replacement for the mini-disc player/recorder they were using previously. According to TV, Asahi use of a dedicated flash-starting device is more stable and secure compared to using mini-discs during file-based switching operations.

Operated in a studio for news and reporting, the HS-2 is primarily utilized for transmitting effects sounds and music for weather reports and news programs. The HS-2 unit itself is mounted in a rack behind the main console, while an RC-SS20 is located on the console. Labels have been applied to the RC-SS20 to show the regularly used sound sources.



Website
http://www.tv-asahi.co.jp/
To Index
